If you need to use iphone or ipad to control your arduino project, sh-hc-08 4.0 ble slave module with 6pin baseboard may be a good choice.
Fully compatible with ios7.0 or later and iPhone 4s / 5 / 5s 6 / 6s.
Also compatible with Android 4.3 or later.

Please note:
if the version of the Android os is less than 4.3. it is not compatible.
This module only supports bluetooth 4.0 ble mode. Not compatible with any classic Bluetooth 2.0 device

About UUID:
Service uuid : FFE0
Write,Read, Notify char uuid: FFE1


Features:

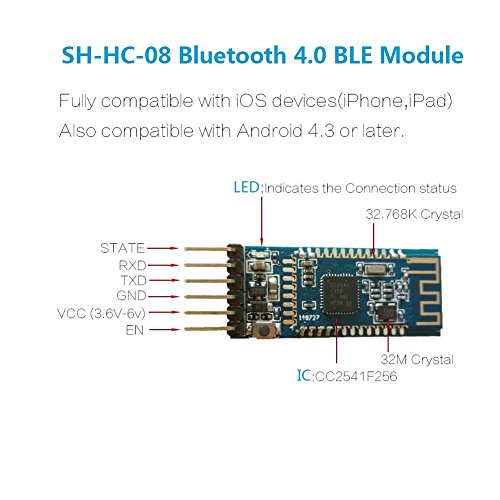

1,Core module uses SH-HC-08, leads from the module interface includes VCC, GND, TXD, RXD, LED status output pin.
2, led indicate Bluetooth connection status, flashing Bluetooth connectivity, lit the Bluetooth connection and open a port Backplane
3, 3.3V LDO input voltage 3.6 ~6V, the input voltage to prohibit more than 7V!
4, the interface level 3.3V, can be directly connected the various SCM (51, AVR, PIC, ARM, MSP430, etc.), the 5V MCU also can be connected directly.
5, open to the effective distance of 10 meters, over 10 meters is also possible, but not of this the quality of the connection of the distance do to ensure
6, after the pair when full-duplex serial port to use, do not need to know anything about the Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format, which is the most commonly used communication format does not support other formats .
7, compact (3.57cm * 1.52cm), the factory chip production to ensure the placement quality. And sets of transparent heat shrink tubing, dust and beautiful, and anti-static

How to Test it:

1, Send "AT" will return " OK" via serial port.
2, Down LightBlue from appstore,and you will find "SH-HC-08" in list.

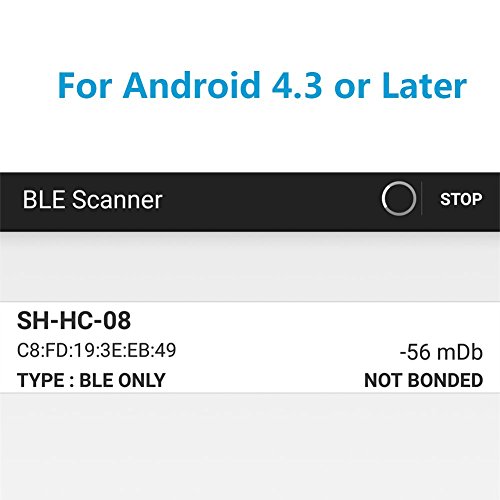

For Android Phone, please down "Ble scanner" app.

Feature

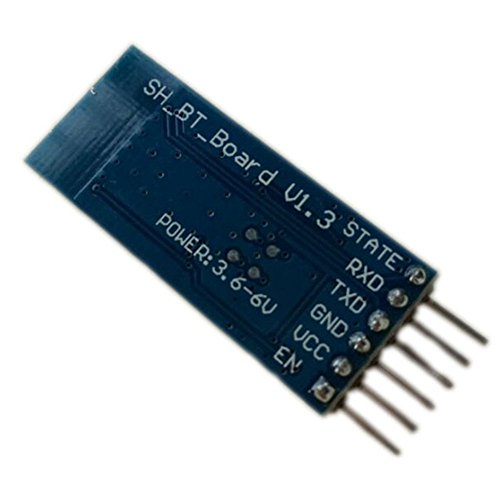

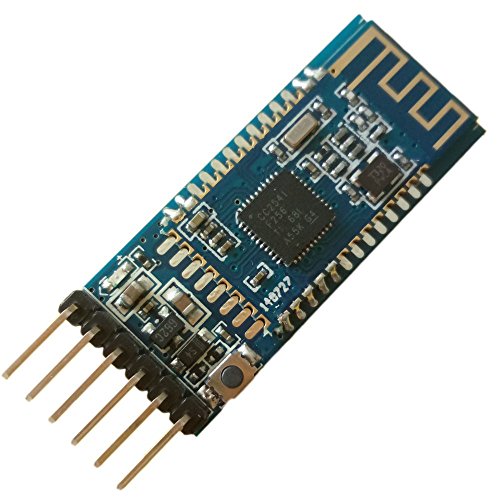

It is a bluetooth 4.0 ble module with 6 PIN baseboard for Arduino also for your DIY wireless project. leads interface includes VCC, GND, txd, rxd , status, EN
Only Slave mode. Compatible with iPhone 4s/5/5s 6/6s and android phones 4.3 or later. The recommended test software is: LightBlue for iOS,"Ble Scanner" app for Android phone.
Main chip is cc2541F256 manufactured by TI. if you are MCU pro, you can program it by cc-debugger.
Default rate : 9600, Working voltage 3.3V to 6V. and You can modify the baud rate and the Bluetooth name via the at command
LIFETIME WARRANTY: We back this Bluetooth 4.0 LE module with LIFETIME WARRANTY. If you meet any question, please contact us, we will fix your issue within 24 hours.
Brand : DSD TECH
Item model num : SH-HC-08
MPN(PartNumber) : SH-HC-08
EAN : 0710219132200
Product Dimensions(LxWxH) : 4x2x1cm ; 18 g
Package Dimensions(LxWxH) : 14x11x1cm ; 18 g
