Product Description

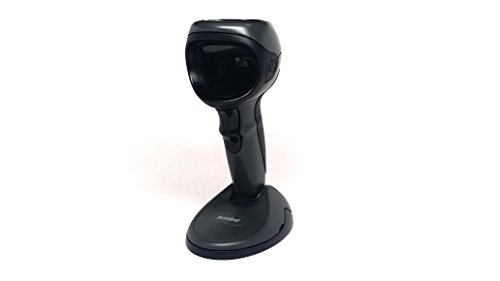

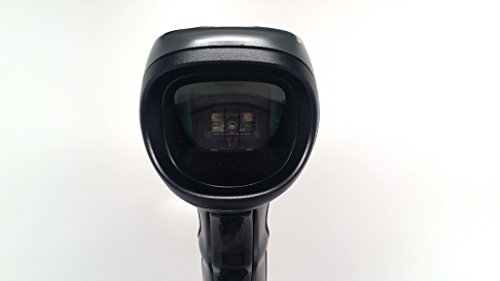

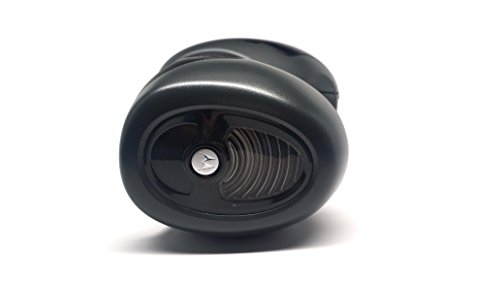

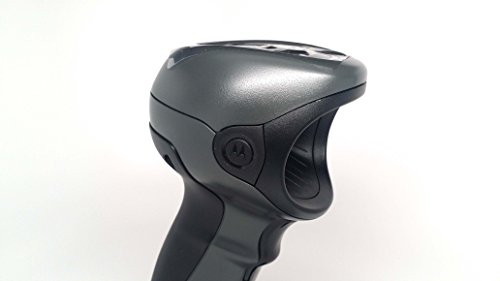

Achieve a new level of productivity and throughput at the checkout stand with the DS9808 from Motorola. This groundbreaking scanner is designed from the inside out to bring a new level of versatility, functionality and performance to the checkout stand. Outside, the DS9808 offers an extraordinary one- of-a-kind hybrid form factor that marries a solid base with our advanced handheld ergonomics.

When it comes to scanning distance, the DS9808 sets a new level of flexibility. The standard range (SR) model can scan up to 10.5 in./26.7 cm away in handheld mode, while the long range (LR) model can scan up to 18 in./ 45.7 cm away.

With omnidirectional scanning, there is no need to take the time to orient bar code and scanner. And since the DS9808 can capture 1D and 2D bar codes on paper labels as well as mobile phone displays, your checkers no longer need to manually enter UPC codes. The ergonomically positioned trigger provides easy and comfortable scanning in handheld mode.

Specifications:
Brand: Motorola Symbol
Model: DS9808
Color: Twilight Black
Operating Temp.: 32° F to 104° F / 0° to 40° C
Humidity: 5% to 95% RH (non-condensing)
Drop Spec: Withstands multiple 5 ft./1.5 m drops to concrete
Scanning: 5 ± 10% VDC @ 230ma average
Light Source Aiming pattern:650nm laser diode
Illumination: 630nm LEDs
Imager Field of View: 39° Horizontal x 25° Vertical
Roll: 360°
Pitch: ± 65°
Yaw: ± 60
Dimensions: 8 in. (max) H x 5.4 in. L x 3.4 in. W 20.3 cm (max) H x 13.7 cm L x 8.6 cm W
Weight: 12 oz./340 g

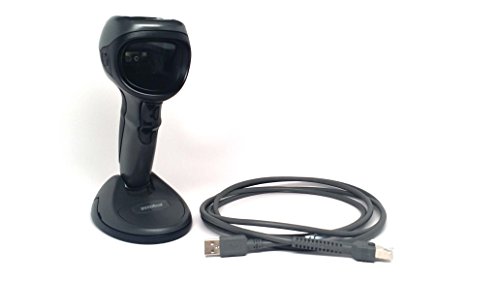

Package Includes:
One Barcode Scanner
One USB Cable
One manual

Feature

Innovative hybrid design --- Truly designed for ease of use for both hands-free and handheld scanning; dynamically switches between modesv
Comprehensive data capture --- 1D, 2D and PDF417 symbologies; image capture
Omnidirectional scanning --- wide working range, laser aiming pattern --- Easy to use; no need to align item and scanner; virtually no training required
Withstands multiple 5 ft./1.5 m drops to concrete --- Designed to endure the rigors of everyday use for maximum reliability and uptime - as well as a low total cost of ownership
The DS9808-SR offers a handheld decode range of up to 10.5 in./26.7 cm
Brand : Zebra/Motorola Symbol
Item model num : DS9808-SR000O7NNWR
MPN(PartNumber) : DS9808-SR000O7NNWR
EAN : 0758399857513
Product Dimensions(LxWxH) : 21x9x14cm ; 9 g
Package Dimensions(LxWxH) : 29x15x9cm ; 9 g
