Product Description
This WiFi Signal Booster is designed for use not only in mobile/mesh wireless networking applications, including 2.4GHz and 5.8GHz, home-using but also for FPV, UAV drones. It is the most consistent signal amplification available for Wi-Fi networks. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance.
Technical Specifications:
Operating Range:2.4~2.5 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,
carrier from transmitter and automatically switch receiving to transmitting mode.
Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:0~20 dBm
Transmit Gain:15-18dB
Output Power:3000mW (35dBm)
Receiver Gain:≤ 12 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 5V~16V/2A DC
Operating Temperature:-20°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 1.6 oz
Booster Size: 2.9" x 1.5" x 0.4"cm
Package Weight: 6.4 oz
Package Size: 4.8" x 4.4" x 2.6"

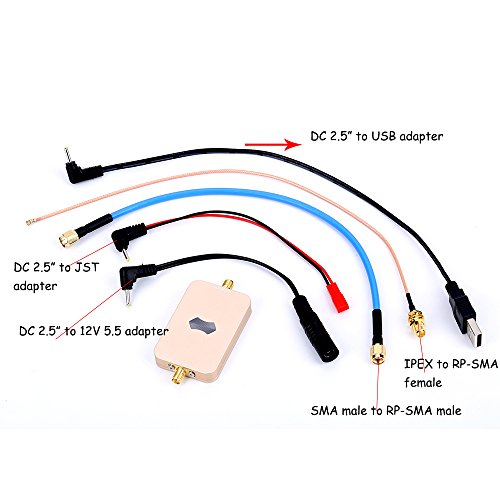

Package contents
WiFi signal booster
RG141 8 inch cable SMA male to RP-SMA male
DC 2.5" to 12V 5.5" adapter
DC 2.5" to USB adapter
DC 2.5" to JST adapter
Mounting Velcro
User Manual
Feature
This 2.4G WiFi booster/amplifier is specially designed for UAV, drones, compatible perfectly with DJI, Yuneec, 3DR, XIRO,Parrot, JTT and Blade.
Excitingly small and ultra thin, compact and weighs only 1.6 oz, booster size: 2.9" x 1.5" x 0.4"
High quality, nice looking, low noise receives gain, saving power, frequency range: 2.4~2.5 GHz
All power connectors, adapters, and mounting velcro included.

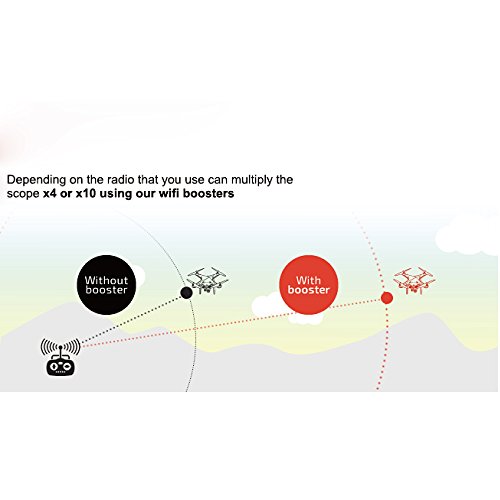

The amazing tiny little kit can increase your RC controller and FPV to a whole new level of performance.
Brand : Sunhans
Item model num : SHRC24G3WP
MPN(PartNumber) : SHRC24G3WP
EAN : 0730440043274
Product Dimensions(LxWxH) : 12x7x13cm ; 159 g
Package Dimensions(LxWxH) : 13x11x7cm ; 159 g
